FM-200 fire extinguishing systems are advanced clean agent solutions designed to protect mission-critical environments where even minimal damage, system downtime or residue-based extinguishing is unacceptable. Utilizing heptafluoropropane (HFC-227ea), FM-200 suppresses fire by rapidly absorbing heat and interrupting the combustion chain reaction. This allows the system to extinguish flames within seconds, often before the fire spreads or becomes visible.

Because FM-200 is electrically non-conductive, colorless, odorless and residue-free, it provides high-performance protection for sensitive equipment such as data centers, automation systems, control rooms, medical technology and archival environments. Its ability to discharge without harming people or equipment makes it one of the most preferred extinguishing technologies worldwide.

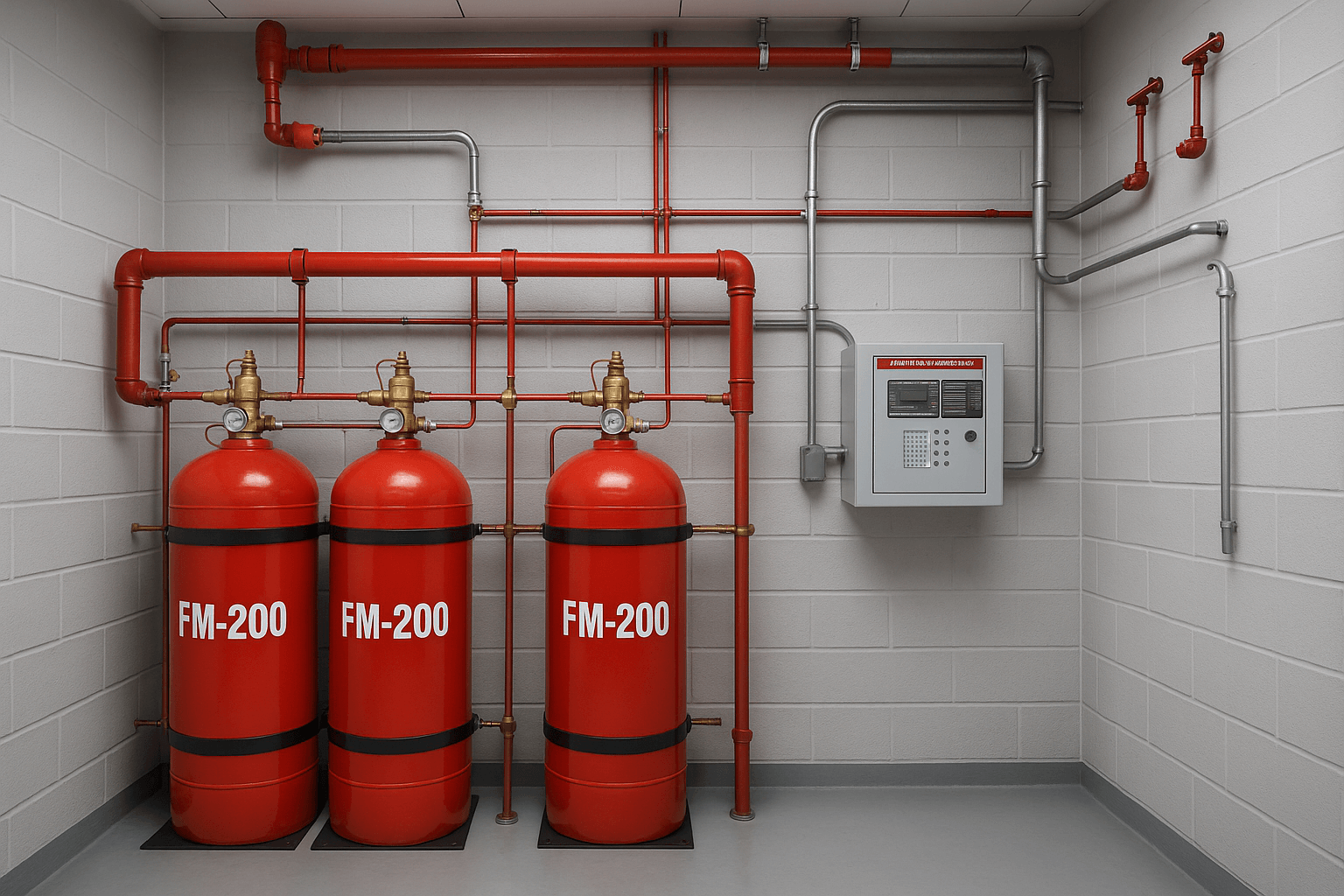

An FM-200 system consists of high-pressure storage cylinders, a precision-engineered piping network, calibrated nozzles and an integrated detection and control panel. When a fire is detected, the system releases the clean agent in gaseous form, flooding the protected volume and removing the heat energy required for combustion.

Key technical characteristics include:

• Discharge in under 10 seconds

• Zero residue and no cleanup required

• Safe for sensitive electronics and electrical infrastructure

• Environmentally acceptable and widely approved

• Compatible with occupied environments

• Engineered system design tailored to each room or enclosure

This makes FM-200 suitable for both compact installations and large-scale critical facilities.

FM-200 operates through a coordinated sequence of detection, verification and discharge:

1. Early fire detection
   Smoke, heat or flame detectors continuously monitor the protected area. Even small incipient fires are detected instantly.

2. Signal processing and verification
   The control panel evaluates signals from multiple detectors to reduce false alarms.

3. System activation
   Once confirmed, the control panel releases the FM-200 agent by opening the cylinder valves.

4. Rapid agent distribution
   The agent travels through the pipe network and is dispersed through specialized nozzles designed to ensure balanced concentration in the room.

5. Suppression within seconds
   FM-200 absorbs heat energy from the fire faster than the fire can sustain itself, breaking the combustion cycle.

Because of this rapid intervention, FM-200 systems often eliminate fires before they cause material damage or interrupt operations.

FM-200 systems are engineered for environments where operational continuity, equipment integrity and data preservation are essential. They are particularly effective in:

• Server rooms and data centers

• Electrical switchgear and control rooms

• Automation and PLC cabinets

• UPS and battery rooms

• Telecommunication and network hubs

• Medical imaging facilities (MRI, CT, laboratory analysis rooms)

• Archives, libraries and document vaults

• Broadcast studios and command centers

• Industrial machine enclosures

These areas cannot risk the corrosion, residue or operational disruption caused by water or chemical-based extinguishing systems.
